Enjoy greater flexibility with the embedded system and its portable sensor part

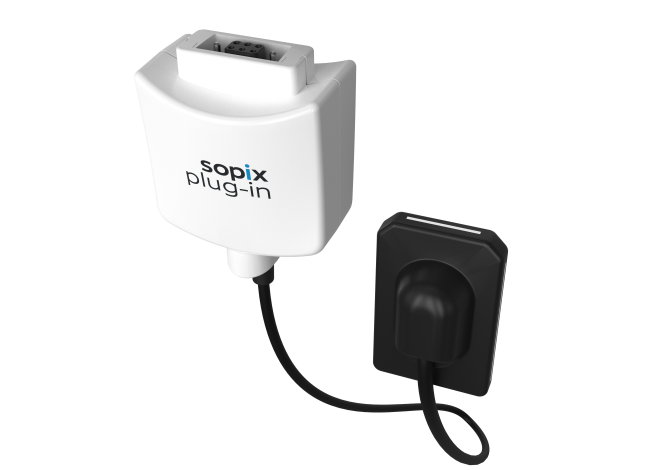

Intelligent digital sensor guarantees high-resolution images. Equipped with Ace® technology, the Sopix² Plug-In sensor ensures image reliability for fast, reliable diagnosis. It is specially designed for use with X-MIND® Unity to ensure optimal use of all functions.
SOPIX® Plug-in benefits from the known X-ray quality characteristics SOPIX® with high performance and flexible sensors compatible with all clinical cases, all morphologies, and all software.

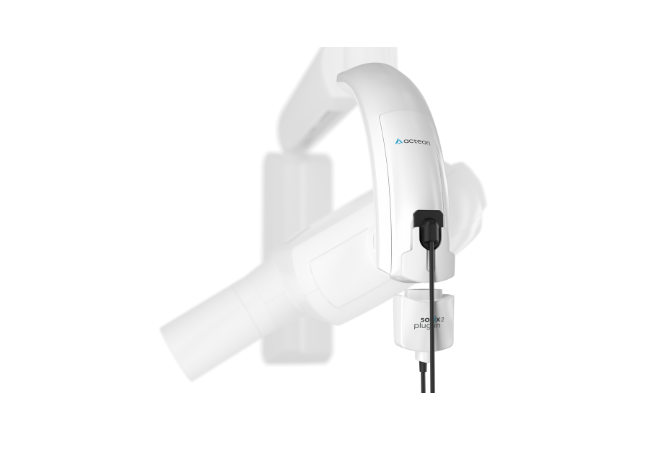

It is specially designed for use with X-MIND® Unity to ensure optimal use of all functions.
Due to our exclusive Ace® technology, our smart sensors provide even greater performance when used with X-MIND® Unity.
Once the sensors receive the required dose of radiation, they order the X-MIND® unity to limit the emission of X-rays. The result is an optimum quality X-ray without risk of overexposure for both the image and the patient.
• Technology: CMOS + Scintillator + Optical fiber
• TWAIN compatible
• Pixel size: 20μm x 20μm
• Number of pixels: 1.50 million (size 1 sensor); 2.21 million (size 2 sensor)
• Resolution > 18pl/mm
• Cable length: 0,70m
• Connexion: USB 2.0
