X-MIND DC

X-MIND DC

The ingenious and simple intraoral system to meet your highest standards

The intra-oral X-ray generator is designed to simplify daily practice and ensure patient safety, while improving veterinary workflows. Acteon X-MIND® DC Vet is ideal for veterinarians wishing to develop dentistry easily.


With its wireless remote, the X-MIND® series can accommodate any operator configuration,
3 arm lengths are available:
▪ 0.40m
▪ 0.80m
▪ 1.10m

and can be:

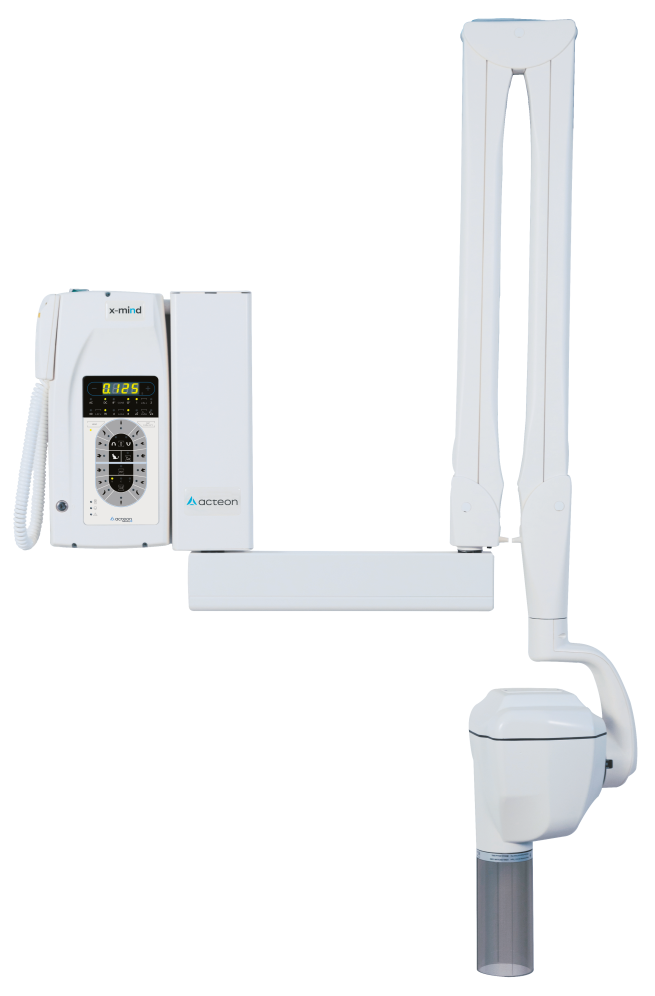

▪ Top wall-mounted
▪ Bottom wall mounted

With three different cone lengths:
▪ Long cone (31cm - 12'')
▪ Short cone (20cm - 8'')
▪ Rectangular Long cone (31cm - 12'')



01 PRODUCT BENEFITS

RELIABLE

X-MIND® DC generators are recognized for their reliable and consistent performance. Two lead beam-limitation devices and the expansion chamber guarantee optimal protection of the practitioner and practice staff.

NATURAL PROTECTION

The control of exposure times preset by the microprocessor guarantees a continuous dose to the patient.
Exposure times are reduced with the use of digital intraoral X-ray systems.

USER-FRIENDLY

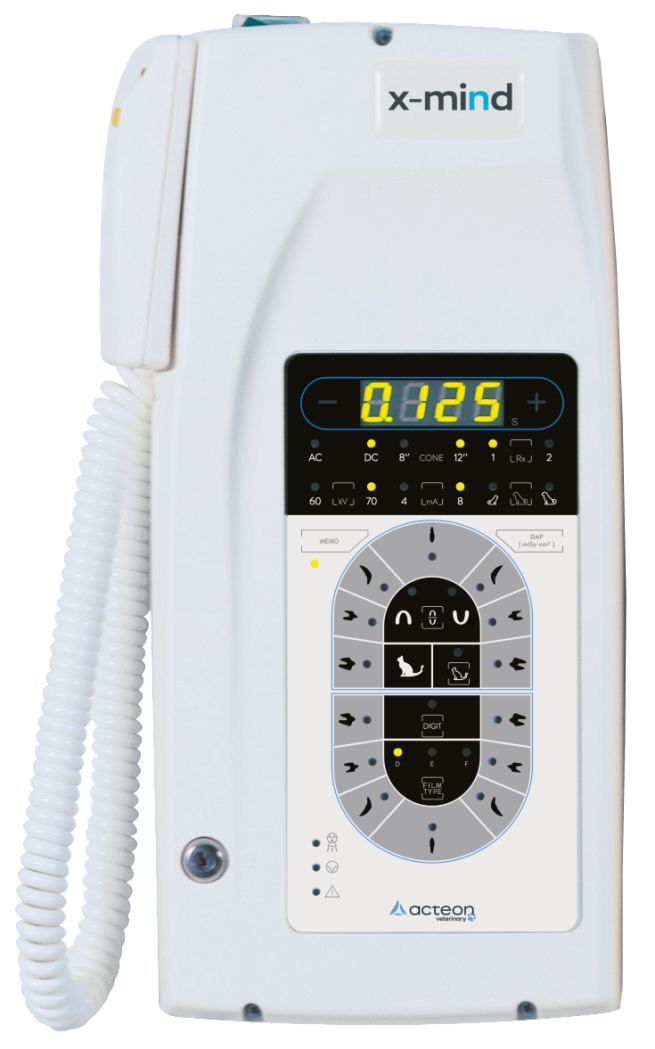

Ergonomically arranged and programmed buttons:
ensures faster task management. Exposure times can be customized to suit your clinical needs.

02 MAIN CHARACTERISTICS

• High voltage: 60 to 70 kV
• Anodic current: 4 to 8mA
• Focal spot: 0,7mm

• Total filtration: Equivalent to 2mm AI at 70kV
• Leakage radiation < 0.25mGy/hr
• Technology: Direct current - HF 150KHz generator

• Timer: from 0.02 to 3.2 seconds
• Weight of head: 5.5kg
• Total weight: 25kg
